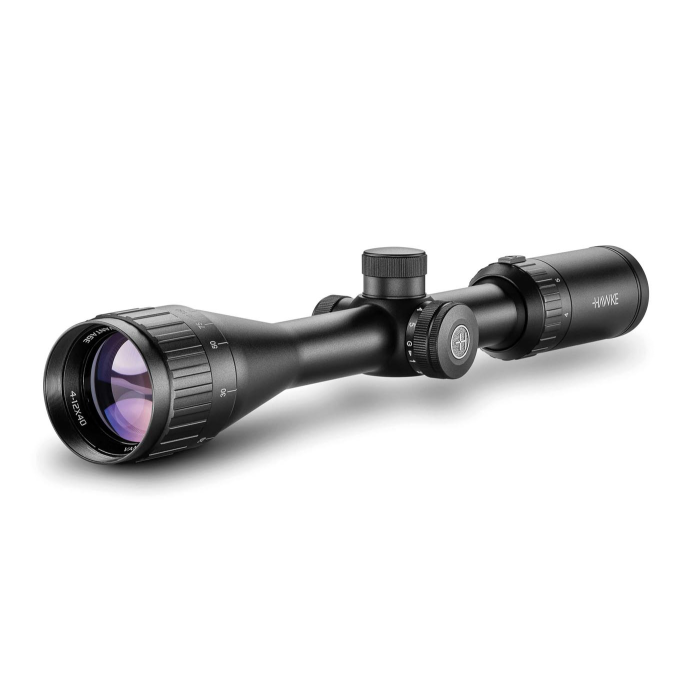

Hawke Optics Vantage IR 4-12x40 AO 17HMR Rimfire Scope 14241
$259.99
In stock
SKU
-8652280523782667297
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
Registered reticle design exclusive to Hawke. Bullet Drop Compensating (BDC) aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.
Designed for .17 HMR. Zero on 12x magnification at 100 yards and the bullet drop compensating reticle provides accurate aim points in 25 yard increments out to 375 yards. Ideal for 17gr ammunition at approx. 2550-2650 fps (777-807 m/s). Can also be accurately calibrated for 20gr ammunition.
The scope can be used for 100m zero with aimpoints correct in metric when the magnification is set to 9.9x.
Scope Tube
1 Inch
Magnification
4 - 12x
Objective Lens
40mm
Reticle
Rimfire .17 HMR (12x)
Illumination
5 Levels (Red & Green)
Illumination Control
Stepped Rheostat
Parallax
Adjustable Objective
Focal Plane
SFP (Second Focal Plane)
Lens Coating
Fully Multi-Coated - 11 Layers
Optical System
System H2
Field of View
26.2 - 8.7ft @100yds
8.7 - 2.9m @100m
Field of View (°)
5 - 1.7
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Click Value
1⁄ 4MOA
Exit Pupil
0.39 - 0.13″
10 - 3.3mm
Turret Type (Elevation)
Capped, Low-Profile, Resettable
Elevation Turret Clicks (max)
80 MOA
Turret Type (Windage)
Capped, Low-Profile, Resettable
Windage Turret Clicks (max)
80 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Length
13.6in
346mm
Weight
18.1oz
513g
